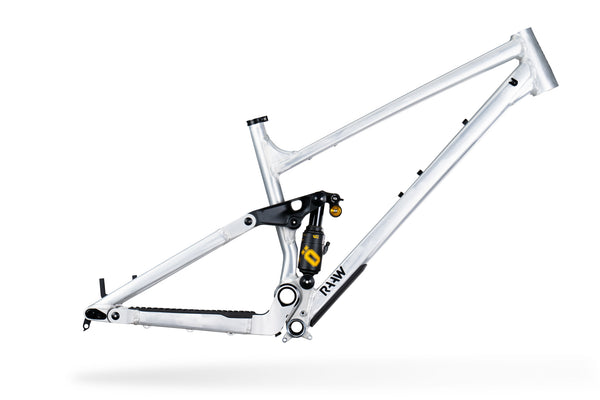

Jibb V1 Frame Kit

Sale price €1.540,00 Regular price €1.765,00

tax included

shipping calculated at checkout

Finish
Frame Size
Add Tuned Shock
Spring Rate
Spring Rate
Protective film

In stock - Ships directly

Built to Last - Backed by RAAW

  • 5-Year Warranty
  • Double Sealed Bearings
  • Factory Grade Support
  • Advanced Setup Guides

Jibb V1 Frame Kit

The Jibb is made to ride up, down and chase its tail all over the mountains. It brings the Madonna’s DNA to an all-around more playful package and entices you to be an active part of the ride. The Jibb does demand more involvement from the rider when things get rough but doesn’t shy away from the big stuff one bit. The chassis gives you all the feedback and confidence you need and makes it an ideal companion for long rides in the hills all the way through to wild bike park days.

If you want to learn more about the Jibb, you can find all details on this page.

Geometry

S M L XL
Travel (R/F) r:135
f:150 (+10)
r:135
f:150 (+10)
r:135
f:150 (+10)
r:135
f:150 (+10)
Reach 420 445 470 495
Stack 608 622 636 649
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.5 77.5 77.5 77.5
Seat Tube BB Offset 35 35 35
35
Head Tube Angle 65.5 65.5 65.5 65.5
Wheelbase 1172 1203 1240 1276
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)



Specifications

Travel rear/ front 135/ 150 (+10)
Wheel size
29” (740-755mm)
Max tire width
2.6” (66mm)
Tire clearance 84mm
Rear hub 148 x 12
Shifting One-by only, boost, 36t max
BB 73mm BSA / ISCG05
Brake 203mm Postmount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 205mm / M 230mm / L 255mm / XL 280mm
Headset 44 / 56 Zero stack
Cable routing All external
Tire to seat tube clearance 10 – 18mm (depending on size and tire)
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)
Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)
Recommended fork dimensions ATC 560mm – Rake 44mm
Shock dimensions 185 x 55 – Trunnion
Weight 3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)
Material AL 6066 T6
Finish options Matt Black and Raw with matt clear coat

Contents

Jibb Frame Kit

  • 1x Frame RAAW Jibb
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Jibb (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

  • 1x Fox DPX2 Factory MY2021
  • 1x Fox Float X Factory 2pos lever
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring
  • 1x Formula MOD incl. Titanium Color spring
  • 1x Öhlins TTX2Air m.2
  • 1x Öhlins TTX22 m.2 incl. spring
Loading image:
Factory Grade Support Included

If you ride a RAAW, you'll never ride alone. Your frame comes with comprehensive documentation and a direct line to the team that created it. We're happy to answer all your questions!

  • 5 stars: 67 (88%)
  • 4 stars: 9 (12%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
A
Anonymous
agil subiendo y extrema bajadora

mtb muy agil subiendo y excelente bajadora.
Su peso extra respecto a una de carbono, no influye para nada subiendo y si ayuda al aplomo en las bajadas.
Seteada correctamente, sus 135 mm son suficiente y no se hecha de menos mas recorrido cuando la cosa se pone seria

D
Darryn

I wanted an aggressive and sturdy trail bike, but still comfortable for big climbs and long days in the saddle, and more playful on the descents than an enduro bike. The Jibb fits this perfectly.
After a few rides it feels like exactly what I wanted, and the build quality is great. Feels like it’s ready to be ridden hard and enjoyed for many years to come.

J
Jordi C.
A trail weapon!

I’ve now had this frame for over 3 months and here are my main takeaways from it.
I am 193cm tall an the xl feels super good and balanced. I really like that the front end is not crazy long and low like some brands do on the xls.
The bike feels great for climbing and general pedalling around, better than i anticipated, but where it excels is at descending, It feels really stable and I love how sensitive the suspension feels on it. However i’m finding the damper tune on the fox float x does very little.

I would like to get on the more progressive rocker to get more supoort in the end of the travel.

The geometry is nearly identical to the jibb v2, it only lacks the xxl size and the extra adjustability which i don’t feel I really need. The bike still feels very current with where geometry is at.

Since i’ve had it my riding has progressed quite a bit, mistakes have been made and the bike has held together super well in general. However, on a big case the bolt for the rocker link snapped in half revealing a super thin walled bolt which was covered under warranty really quickly. I’ve found the stock derailleur hanger to be really soft and bend and snap very easily. Those have been the main weak points i’ve found. That being said i ride mostly enduro trails and a couple bike park rides a year and the bike hasn’t skipped a beat.

I would buy this frame again but I would get some spare derailleur hangers and one or two replacement bolts to go with it.

I
Ioannis K.
Jibb v1

Just an amazing bike! Jibb definitely goes big with trail agility and almost enduro felling that gives much confidence than expected. Most impressed by its sharp cornering and pedal efficiency.

F
Frederik S.
Super maschine

Das Radel fährt sie wie ein downhill, man merkt kaum das es ein Trail bike ist. Habe bis her nur Komplimente für das Bine bekommen. Echt ein geiles Teil!

S
Steven B.
Amazing Machine

Recently purchased the Jibb V1 Fox Factory Kit and am truly amazed on how the bike handles. Took the Jibb out for its maiden voyage at NorthStar Bike park in Tahoe. Needless to say the bike did an excellent job keeping up with the downhill bikes. Super nimble and easy to ride, plows through the toughest sections and glides over the jumps. I’ve owned the Madonna V2.2 and now the Jibb V1 and am very impressed and pleased with the quality and ride of RAAW bikes. Highly recommend the Jibb.

M
Maciej M.
Absolute blast!

After couple of years riding hardcore slack and very long steel hardtail I wanted something with more nimble geo and soft rear end and I am absolutely delighted. Geometry is very well dialled for trail bike and the build quality is exceptional. Raw finish is a looker as well! I'm in love with this bike. The only very small gripe is the routing of dropper post cable, which requires undoing the lower shock bolt if you need to do some small adjustments for post height, but it is just a small detail. Excellent bike overall!

A
Anian
Rundum happy

Rad ist schnell angekommen und der Aufbau war dank der beigefügten Erklärung super einfach. Das Bike fährt sich sehr verspielt und mit etwas zutun des Fahrers auch in ruppigem Gelände sehr sicher! Das schönste ist absolute Stille: nichts klappert oder ruckelt. Das etwas höhere Gewicht ist überhaupt nicht zu spüren, Uphills sind gut machbar.

R
Radu G.
Awesome bike overall!

The bike handles really nice; for a 135 mm travel bike it is really stable even on steep terrain and harsh roots. The build quality is really goos, although the cable routing was a bit fiddly. The frame is not the lightest, but given that is makes almost no strength to weight compromises I do not mind. Let’s hope I will have the same opinion in a few months, or even years.

M
Mihail G.
Great all around bike

I have the bike for around a month and I had the opportunity to ride it on different kind of terrains with a lot of steep climbs and descents. The rides were great no matter what were the conditions on the trail. I rode it on wet trails, dry trails and even snow. In every condition the bike feels stable and comfortable. The bike might seem heavy but the riding position is great and climbs are pretty easy. And on the descent the bike is very stable and gives the rider the confidence to take on every trail.

M
Maurits W.
Jibb frame

Was thinking buying a full suspension bike for over a year. Always have been riding a hardtail bike and actually like the direct feeling of it. With this in mind i wanted a bike who eats up a little bit of the big hits and keeps the direct feel. Long searching for this bike and decided it isn.t my way of riding a bike that.s eats up all the hits and doesn.t need to be treated with care over rough terrain. So i ended up with this bike. The jibb v1. Put a 160 mm travel in front en x2 float as a shock. My first ride i was immetiatly stoked by super handling and feel in the trail. A super nice bike. Direct feel. Feels free in riding and gives good trail response and gives good support in the sudpension. Super stoked about my jibb v1

C
Customer

I love it!!!

j
jaco B.

Very responsive with very informative replies.

R
Rick R.
Perfect trail bike

Been riding it for a couple months now and thoroughly enjoying it! Super smooth suspension feel and quiet ride, pedals really well too no bad traits. The handling with shorter 445 UDH stay(XL size) combined with higher stack makes for an agile ride. This thing really shines when pointed down tho just floats over the chunk.

D
Dave.

The definition of One bike can do and does it all.

D
Dave.
Raawsome!

Just love the bike & the whole Raaw vibes in general. From the warm welcome package with a hand written personal note , added with some stickers & goodies, to building up this Raawsome Jibb , the whole process just felt right! In love with the Jibb, steady & playful at the same time, & external cable routing is a blessing ..! Thanks Ruben & team! And especially Ruben for the personal contact! Much much appreciated..Keep up the Ra(a)w philosophy team! The MTB ‘community’ needs more of this.

M
Matthias
Spaßiges Trail-Bike mit Enduro-Genen

Ein agiles Bike, das in jedem Gelände richtig Spaß macht. Auch wenn es mal etwas rauer wird, wirkt das Bike nie überfordert. Bei dem vergleichsweise geringen Federweg hätte ich das nicht erwartet.
Die aufwendige Konstruktion der Hinterachse erstaunt mich immer wieder aufs neue.

Ich fahre bei 180 cm Körpergröße Rahmengröße L mit einer 150-mm-Gabel.

M
Matthew W.

Amazing bike it rides so well dont think i will ever change from RAAW bikes!

J
J.P.
RAAW Jibb in Calgaty, Albeta

I am loving this beautiful frame! It arrived well packaged and all the little details are perfect. Thank you very much RAAW!

I
Ioannis K.

I most do enduro riding. But I wanted a bike to keep me fit. Definitely it’s much more than I was expecting. I love the way it handles and accelerates in rough trails but also so pedal friendly

J
Jakub F.
What a machine!

I have only positive feedback for you guys. Such amazing bike! I would start with most obvious thing: collor. I was looking for bike that will stand out, as I dont want bike like everyone else... The built quality is next level. I love how sturdy it is. I feel much confident on this bike. Overall it is built like a tank!

R
Richard

Super toller Rahmen, der auch sehr angenehm war daran zu arbeiten.
